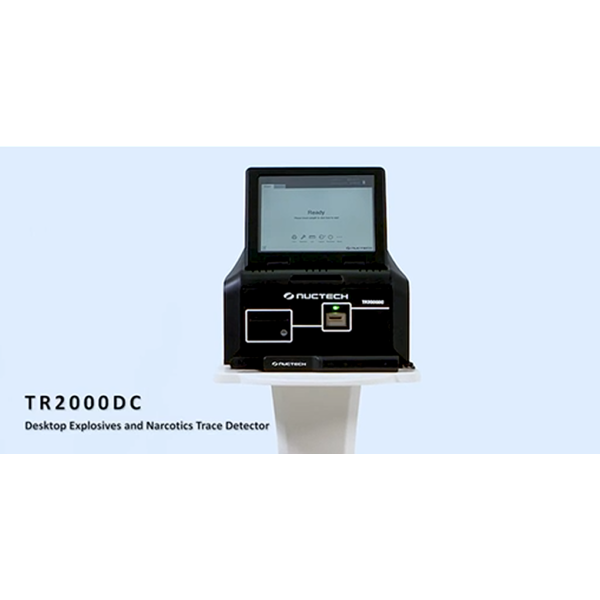

Trace Detector for Explosives and Narcotics

NUCTECH™ TR2000DC

The NUCTECH™ series is applied to identify the presence and type of traces of explosive and narcotic substances that can be taken from the sampling of suitcases, vehicles and even individuals. By adopting reliable trace detection technology based on Ion Mobility Spectrometry, the TR series provides high sensitivity and flexibility in detecting a wide range of explosives and drugs in a fast analysis cycle and is therefore ideal for all security applications and analysis in Customs.

The TR series includes the TR2000DB-A and TR2000DC benchtop detector for analysis at security checkpoints and the TR1000DB-A handheld detector for portable and field use, with low weight, robustness and rechargeable Li-ion batteries.

Read more
  • Dimension / Weight340mm×325mm×233mm / 12kg
  • Scan Speed8 seconds typically
  • BatteryUp to 1 hour in full
  • Electric supply100VAC~240VAC, 50Hz / 60Hz
Request a Quote
i Image performance specifications are based on test piece complying with CAAC standard.

Technical Features

  • High sensitivity and flexible detection of a wide range of explosives and narcotics with an updatable substance library.
  • Non-radioactive ionization source with no extra manual calibration.
  • Automatic internal calibration with no extra manual operation.
  • Enabling both particulate and vapor sampling effectively.
  • Quick analysis within 8 seconds and fast cleaning to enable higher transmission.
  • Low false alarm rate due to new detection algorithm and dopant.
  • Simplified touch-screen operation with a graphical user interface and minimized training required.
  • Standard Ethernet and USB port for data acquisition and software update.
  • Lightweight, rugged design and easy to transport.

General Specifications

  • Detection TechnologyIon Mobility Spectrometry
  • Ionization TechnologyNon-radioactive ionization source
  • Positive & Negative Ions Analyzing ModeSimultaneous explosives & narcotics detection in dual modes
  • Detectable ExplosivesTNT, C4, Tetryl, DNT, NG, PETN, RDX, Semtex, HMX, HMTD, AN, TATP and black powder, etc
  • Detectable NarcoticsCocaine, Heroin, Morphine, Amphetamine, MA, MDMA, THC, PCP, LSD, Procaine, Ketamine, Ephedrine, Dilantin, etc.
  • SensitivityPicogram to Nanogram level
  • Sampling MethodParticulate wiping collection
  • ReadoutAutomatic Pass/Alarm with credibility indicator Substances identification with characteristic spectrum display Configurable visual and audio alarm
  • Communication InterfaceUSB and Ethernet LAN and VGA

Products

  • TypeDesktop
  • User Interface10.4” touch-screen LCD
  • Warm-up Time20 minutes typical
  • Analysis Time8 seconds typical
  • PrinterBuilt-in printer

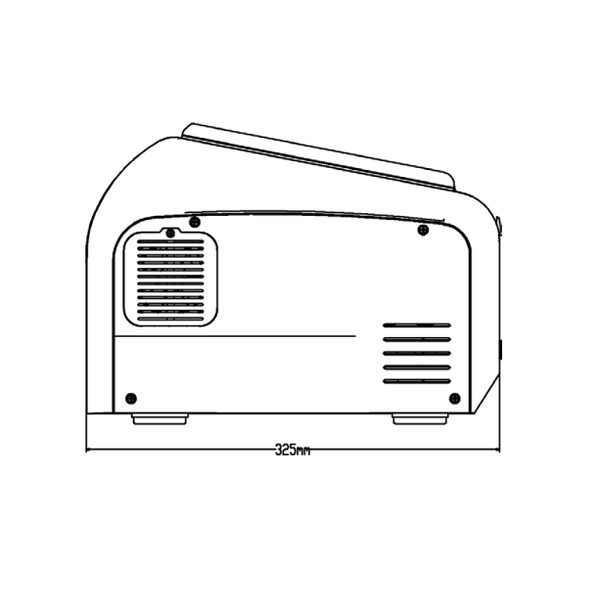

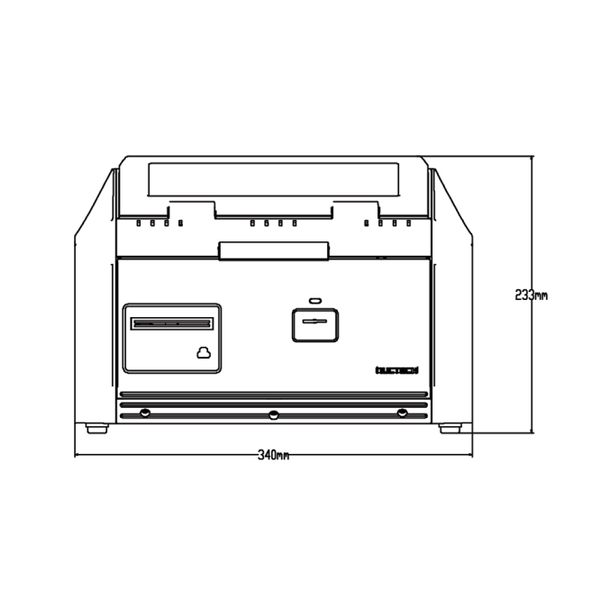

  • Dimensions340mm(L)×325mm(W)×233mm(H)
  • Operating Temperature-20°C ~ +55°C
  • Weight12KG
  • Power Supply220VAC / 110VAC (-15%~+10%), 50 Hz / 60Hz±3Hz
