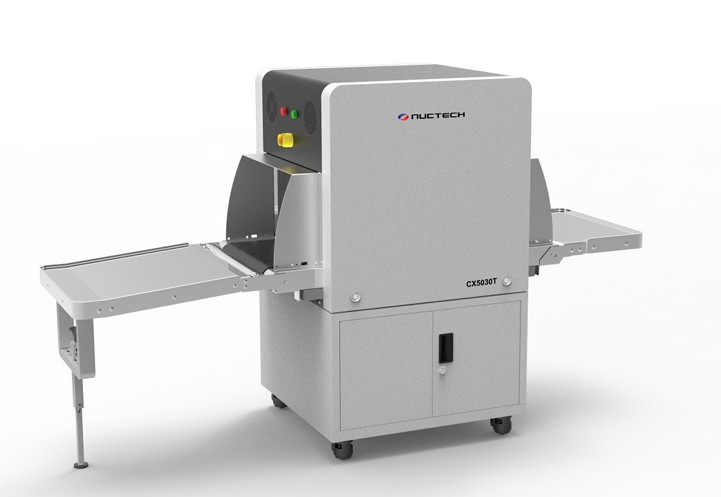

X-Ray Inspection System
NUCTECH™ CX5030T
The NUCTECH™ CX5030T X-ray Inspection System, is an advanced dual-energy X-ray security inspection system which is newly designed and produced by NUCTECH COMPANY LIMITED. With tunnel dimensions of 534mm width and 328mm height, it is perfectly suitable for inspection for handheld baggage, post parcels and briefcases in government offices, court, mailrooms, embassies, stadiums, exhibitions and other security sensitive areas. Due to its small size with width of only 770mm and weight of 190kg, CX5030T can be installed and transported very easily.
The CX5030T combined with unsurpassed operation ergonomics, reliability and safety, can provide excellent image quality and advanced material classification. CX5030T also offers explosive and drug auto detection as optional functions.
Read more- Tunnel Dimensions534mm (W) x 328mm (H)
- Conveyor Speed0.20m/s
- Conveyor Height160mm
- Max. Load60kg
Technical Specifications
General Specifications

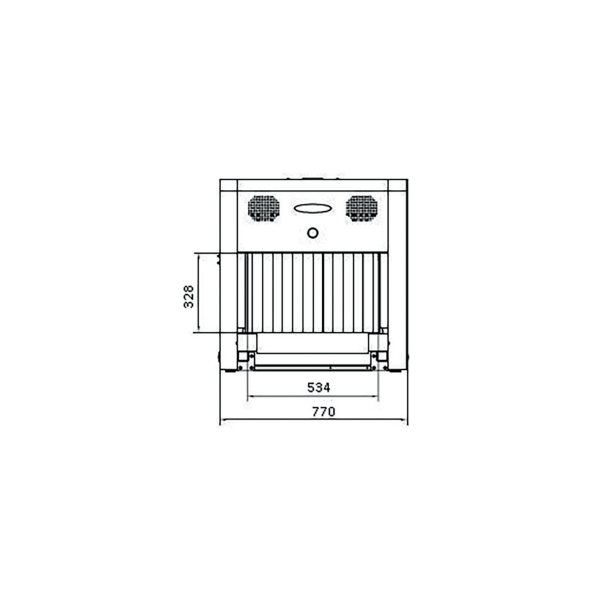

- Tunnel Dimensions534mm (W) x 328mm (H)
- Conveyor Speed0.2m/s
- Conveyor Height160mm
- Max. Load60KG
Image Performance
- Wire Resolution40 AWG
- Steel Penetration16mm
Image Processing
- Image EnhancementColor / BW, negative, high / low penetration, organic / inorganic stripping, general enhancement, multiabsorptivity, and suspect material enhancement, etc.
- Material ClassificationAccording to atomic number signatures
- ROI & ZoomStep / step less zoom, enlargement up to 32 times
- Image RecallPreceding images recallable
- Image Storage CapabilityUp to 50,000 images
Installation Data

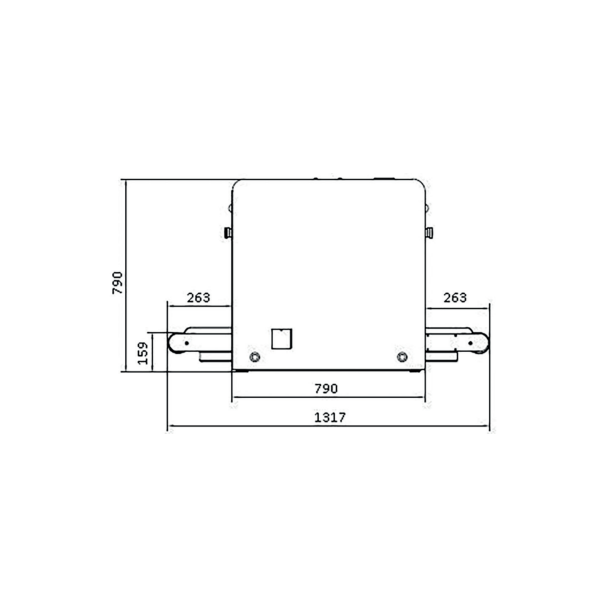

- Dimensions1317mm (L) x 770mm (W) x 790mm (H) / 190kg
- Weight190kg
- Operating Temperature / Humidity0°C~ +40°C / 5% ~ 95% (non-condensing)
- Storage Temperature / Humidity-40˚c ~ +60˚c / 5% ~ 95% (non-condensing)
- Power Supply220VAC/110VAC (-15% ~ +10%); 50Hz/60Hz, ±3Hz
- Power Consumption0.7kVA
Health & Safety
- X-ray LeakageLess than 1μGy / hr (5cm from the housing)
- Film SafetyGuaranteed for high speed film up to ASA/ISO 1600 (33DIN)
-
