X-Ray Inspection System
NUCTECH™ CX6040BI
The NUCTECH™ CX6040BI X-ray Inspection System comes from the most advanced and best proven CX product platform, and fully inherits and shares improved image quality with a variety of professional image enhancement processing functions, ergonomic and friendly user interface, intelligent networking capabilities and applications, excellent reliability and maintainability.

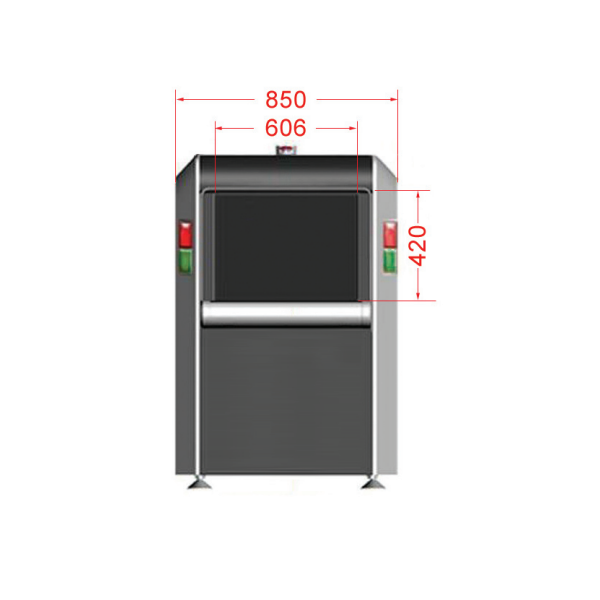

The CX6040BI has a popular tunnel opening of 606mm wide by 420mm high, as well as a modern outlook and compact framework design, and it’s the best solution for security and customs requiring screening of hand-held baggage and parcels at airports, rail transportation stations, critical infrastructures and big events, etc.
Read more- Tunnel Dimensions606mm(W) × 420mm(H)
- Conveyor Speed0.20m/s
- Conveyor Height680mm
- Max. Load160kg
Technical Specifications
General Specifications
- Tunnel Dimensions606mm(W) × 420mm(H)
- Conveyor Speed0.2m/s
- Conveyor Height680mm
- Max. Load160KG
Image Performance
- Wire Resolution40 AWG
- Steel Penetration38mm
Image Processing
- Image EnhancementColor / BW, negative, high / low penetration, organic / inorganic stripping, general enhancement, multiabsorptivity, and suspect material enhancement, etc.
- Material ClassificationAccording to atomic number signatures
- ROI & ZoomStep / step less zoom, enlargement up to 32 times
- Image RecallPreceding images recallable
- Image Storage CapabilityUp to 50,000 images
Installation Data

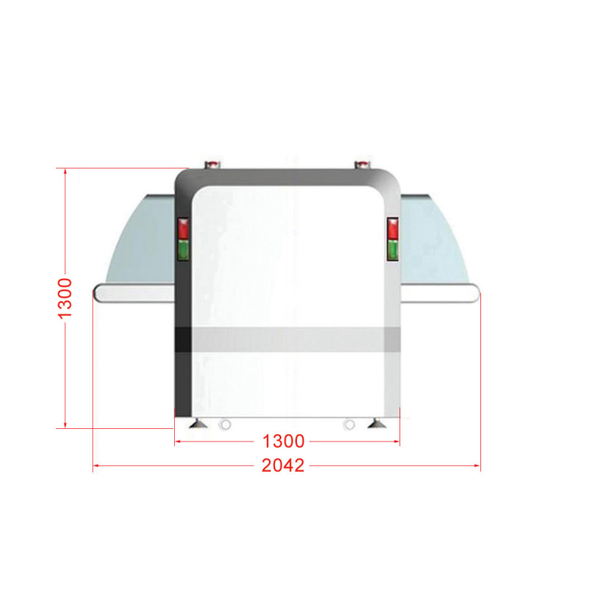

- Dimensions2042mm(L) × 850mm(W) × 1300mm(H)
- Weight640kg
- Operating Temperature / Humidity0° C ~ +40° C / 5%~95% (non-condensing)
- Storage Temperature / Humidity-40° C ~ +60° C / 5%~95% (non-condensing)
- Power Supply100VAC ~ 240VAC (-15% ~ +10%)，50 Hz/60Hz ±3Hz
- Power Consumption0.8kVA
System Functions
- Standard FunctionsTime / date display, counters, user management, system-on / X-rayon timers, power on self-test, builtin diagnostic facilities, dual-direction scanning, system log, system standby and training, etc
- Optional FunctionsExplosives / narcotics detections, high-density area alert, threat image projection(TIP)
Health & Safety
- X-ray LeakageLess than 1μSv/hour (5cm from the housing), complying with all published international health and safety standards
- Film SafetyGuaranteed for high speed film up to ASA / ISO1600(33DIN)
-
