X-Ray Inspection System
NUCTECH™ CX100100D
The NUCTECH™ CX100100D X-ray Inspection System is a new generation dual view dual-energy X-ray inspection machine for inspecting large luggage, baggage and small cargo. It uses a dual view design and images of each view are displayed on a dedicated monitor. Dangerous objects and contraband hidden beneath overlapping areas are more easily found and located. It stands out from others on the market with a more modern and ergonomic design for efficient and professional X-ray screening. With tunnel dimensions of 1010mm width and 1005mm height, it is perfect for baggage inspection at airports, railway stations, Customs, ports and stadiums, etc.
The CX100100D combined with unsurpassed operation ergonomics, reliability and safety can provide excellent image quality and advanced material classification. There are also explosive and drug auto detection options.
Read more- Tunnel Dimensions1010mm×1005mm(H)
- Conveyor Speed0.20m/s
- Conveyor Height300mm
- Max. Load200kg
Technical Specifications
General Specifications
- Dual View ImagingBoth vertically and horizontally projected images

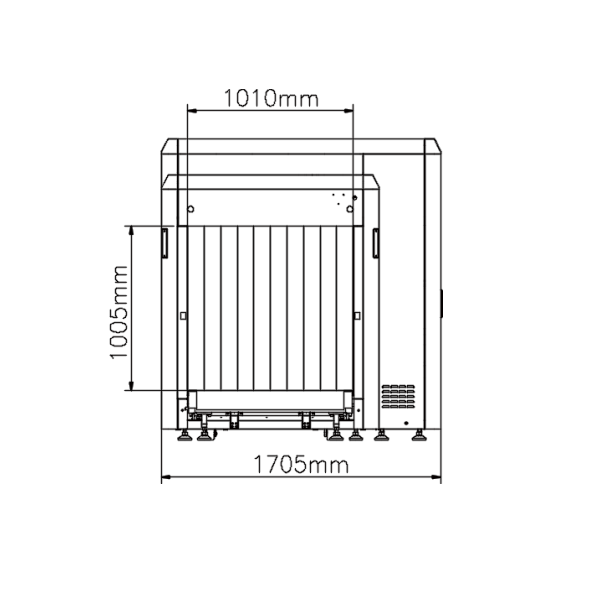

- Tunnel Dimensions1010mm(W)×1005mm(H)
- Conveyor Speed0.2m/s
- Conveyor Height300mm
- Max. Load200KG
Image Performance
- Wire Resolution38 AWG
- Steel Penetration35mm
Image Processing
- Image EnhancementColor / BW, negative, high / low penetration, organic / inorganic stripping, general enhancement, multiabsorptivity, and suspect material enhancement, etc.
- Material ClassificationAccording to atomic number signatures
- ROI & ZoomStep / step less zoom, enlargement up to 32 times
- Image RecallPreceding images recallable
- Image Storage CapabilityUp to 100,000 images
Installation Data

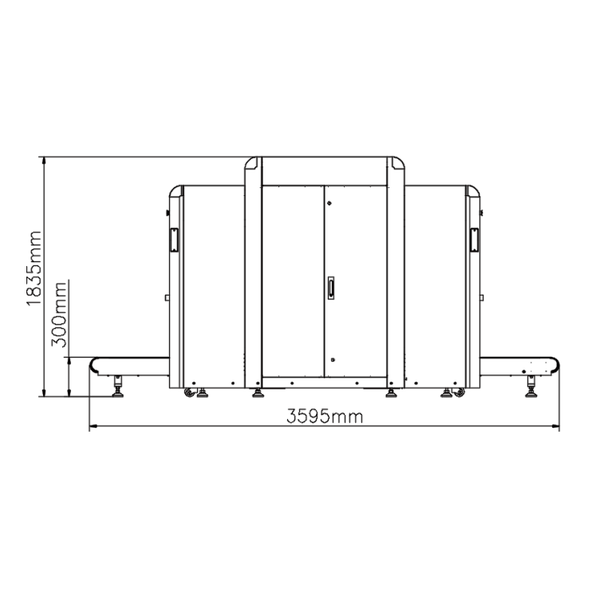

- Dimensions3595mm(L)×1705mm(W)×1835mm(H)
- Weight1400kg
- Operating Temperature / Humidity0° C ~ +40° C / 5%~95% (non-condensing)
- Storage Temperature / Humidity-40° C ~ +60° C / 5%~95% (non-condensing)
- Power Supply220VAC / 110VAC (-15%~+10%), 50Hz / 60Hz±3Hz
- Power Consumption1.5kVA
System Functions
- Standard FunctionsTime / date display, counters, user management, system-on / X-rayon timers, power on self-test, builtin diagnostic facilities, dual-direction scanning, system log, system standby and training, etc
- Optional FunctionsExplosives / narcotics detections, high-density area alert, threat image projection(TIP)
Health & Safety
- X-ray LeakageLess than 1μSv/hour (5cm from the housing), complying with all published international health and safety standards
- Film SafetyGuaranteed for high speed film up to ASA / ISO1600 (33DIN)
-
