Liquid Security Inspector
NUCTECH™ RT1003EB

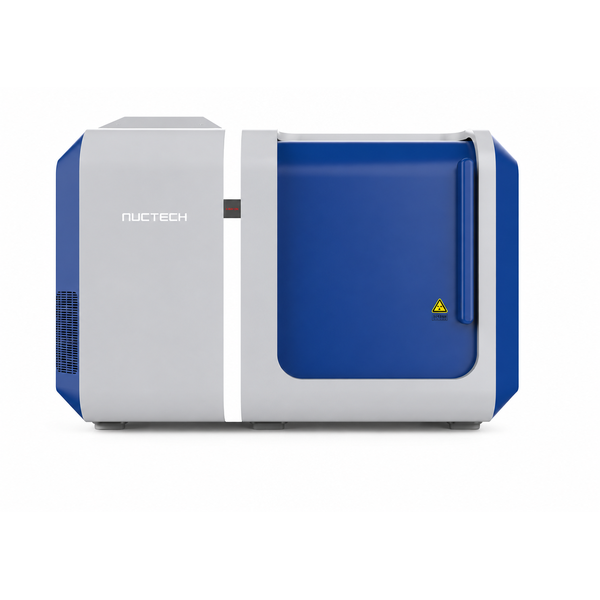

The NUCTECH™ RT1003EB Liquid Security Inspector that can analyze most dangerous materials in most types of container and identifies the threat material. The RT1003EB uses Raman spectrum technology and identifies material at the molecular level. The inspection process is simple, rapid (a few seconds) and the False Alarm Rate is very low. Since there are some containers (such as metal) and some dark materials that cannot be analysed using Raman, the RT1003EB includes technology to measure the sample density as an alternative method for these items.
RT1003EB employs a two sided door to enclose the laser beam sampling area whilst providing easy access from either side. This means it can be used between two security inspection channels, improving efficiency by minimising the distance the Security Staff have to move to insert containers and assess the results. These characteristics make the RT1003EB very efficient in airports for the security inspection of Liquids, Aerosols and Gels (LAGs) in all types of containers.
Read more- Dimension / Weight755mm × 442mm × 532mm/27kg
- Scan SpeedLess than 5 seconds
- Battery50Hz / 60Hz±3Hz
- Voltage220V / 110VAC (-15% ~ +10%)
Technical Features
- Accurate and rapid identification for suspicious liquids
- Extensive library - adding new by users
- Reliable result in 5 seconds typically
- Dual-channel design
- Non-transparent container detection
- Adaptive packaging recognition
- Non-destructive and non-radioactive
- Standard USB and Ethernet for data transfer and software update
- User friendly interface with touch screen
General Specifications
- Technology PrincipleRaman spectroscopy
- Detectable Threat LiquidsFlammables, explosives and precursors, toxic reagents, strong oxidizing and corrosive liquids, etc.
- Open DatabaseExtensible library, support new additions by users
- Types of containerGlass, plastic, paper, metal (Tetra Pak, foil, can, tin, aerosol)
- ReadoutClear/Alarm (liquid security information) Identification Data with Raman spectrum Configurable visual and audible alarm
- Startup Time< 60 seconds
- Standard Inspection Time 5 seconds
- Communication InterfaceUSB and Ethernet LAN
- User Interface7” LCD touch-screen
Products
- TypeDesktop
- User Interface7” LCD touch-screen
- Start-up Time60 seconds
- PrinterBuilt-in printer
- Dimensions755mm × 442mm × 532mm
- Operating Temperature0°C ~ 40°C
- Weight27KG
- Power SupplyAC 100V ~ 240V 50Hz ~ 60Hz 40W
-
