X-Ray CT Inspection System
NUCTECH™ Kylin
The NUCTECH™ Kylin X-ray CT Inspection System is a newly developed CT (Computed Tomography) inspection system developed by NUCTECH COMPANY LIMITED. The system innovatively combines dual-energy material discrimination technology with spiral CT technology. With multidimensional information acquired by the system, it realizes automated explosives / liquid explosives/narcotics detection and alarms with a higher probability of detection and lower false alarm rates.
Designed with a larger tunnel size and a higher throughput, Kylin is an ideal security solution for airports, Customs, critical infrastructures, governmental buildings, public activities, etc.
Read more- Tunnel Dimensions624mm x 420mm
- Dimension3780(L)×1330(W)×1685(H)mm
- Weight2000kg
- StorageMore than 50,000 images
- Power Supply220VAC / 110VAC (-15% ~ +10%)
50Hz / 60Hz±3Hz - Energy consumption3.2kVA
Technical Specifications
General Specifications
- Tunnel DimensionsMax. Width: 620mm, Max. Height: 420mm
- Max. Baggage Size2000mm(L)×620mm(W)×420mm(H)
- Conveyor Height675~725mm
- Max. Load160KG
- Throughput900TPH
- Display MonitorColor monitor / High resolution of 1920×1080
Image Performance
- DR Wire Resolution40 AWG
- DR Steel Penetration40mm
Image Processing
- DR Image ProcessingColor / BW, Negative, Edge enhancement, General enhancement, Organic stripping, Inorganic stripping, High-energy Penetration, Pseudo-color, etc.
- ROI & ZoomSelectable image zoom regions, 1~64 times enlargement
- Image Storage CapabilityUp to 50,000 images
Installation Data

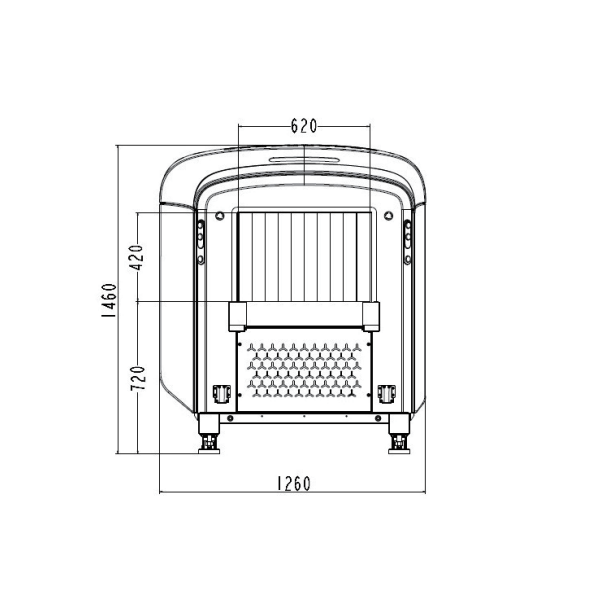

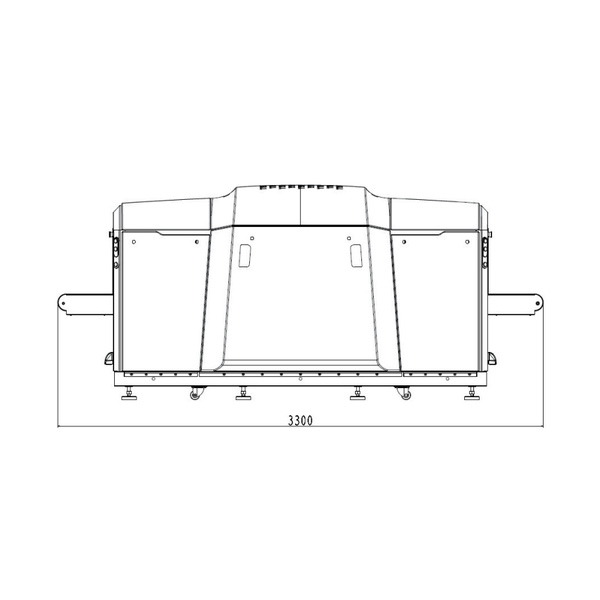

- Dimensions3300mm(L)×1260mm(W)×1460mm(H)
- Weight1450kg
- Operating Temperature / Humidity0℃ ~ +40℃ / 5% ~ 95% (non-condensing)
- Storage Temperature / Humidity-40℃ ~ +60℃ / 5% ~ 95% (non-condensing)
- Power Supply220VAC / 110VAC (-15% ~ +10%), 50Hz / 60Hz±3Hz
- Power Consumption1.9kVA
System Functions
- Standard FunctionsDate / Time display, Baggage counter, User management, System-on timers, Power-on self-test, Image Storage and query, Built-in diagnosis.
Health & Safety
- X-ray LeakageConform to all the radiation protection standards recommended by IAEA, ICRP and WHO
-
