X-Ray Inspection System
NUCTECH™ CX7555BI
The NUCTECH™ CX7555BI X-ray Inspection System is an advanced dual-energy X-ray security inspection system which is newly designed and produced by NUCTECH COMPANY LIMITED. With tunnel dimensions of 755mm width and 555mm height, it is perfectly suitable for inspection of briefcases, hand-held baggage, and parcels in airports, customs, railway stations, coach stations, ports, important events, government offices, stadiums, etc.
The CX7555BI combined with unsurpassed operation ergonomics, reliability and safety, can provide excellent image quality and advanced material classification. CX7555BI offers explosive and drug auto detection as optional functions.

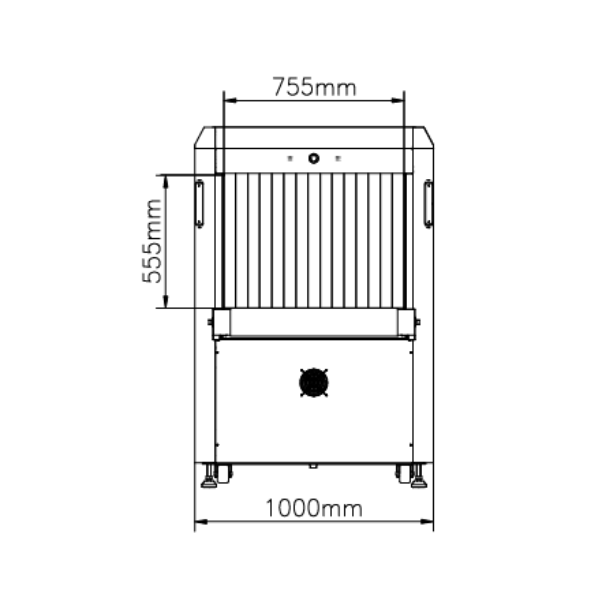

Download Brochure- Tunnel Dimensions755mm(W) × 555mm(H)
- Conveyor Speed0.20m/s
- Conveyor Height750mm
- Max. Load160kg
Technical Specifications
Image Performance
- Wire Resolution40 AWG
- Steel Penetration38mm
Image Processing
- Image EnhancementColor / BW, negative, high / low penetration, organic / inorganic stripping, general enhancement, multiabsorptivity, and suspect material enhancement, etc.
- Material ClassificationAccording to atomic number signatures
- ROI & ZoomStep / step less zoom, enlargement up to 32 times
- Image RecallPreceding images recallable
- Image Storage CapabilityUp to 50,000 images
Installation Data

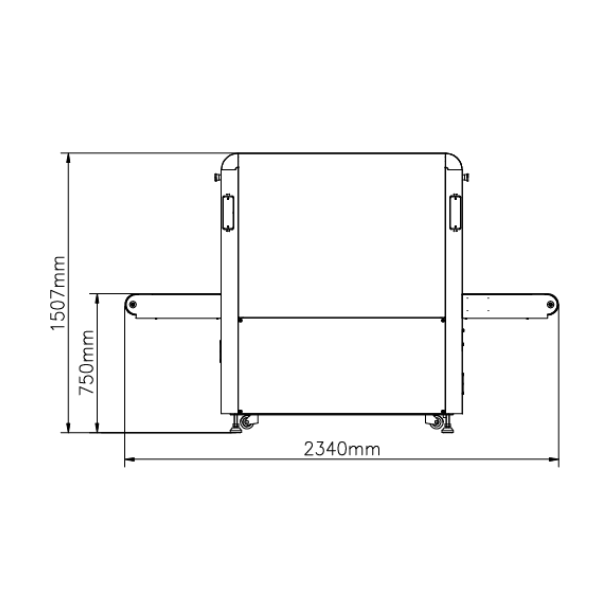

- Dimensions2340mm(L)×1000mm(W)×1507mm(H)
- Weight710kg
- Operating Temperature / Humidity0° C ~ +40° C / 5%~95% (non-condensing)
- Storage Temperature / Humidity-40° C ~ +60° C / 5%~95% (non-condensing)
- Power Supply220VAC/ 110VAC (-15% ~ +10%)，50 Hz/60Hz ±3Hz
- Power Consumption1.0kVA
System Functions
- Standard FunctionsTime / date display, counters, user management, system-on / X-rayon timers, power on self-test, builtin diagnostic facilities, dual-direction scanning, system log, system standby and training, etc
- Optional FunctionsExplosives / narcotics detections, high-density area alert, threat image projection(TIP)
Health & Safety
- X-ray LeakageLess than 1μSv/hour (5cm from the housing), complying with all published international health and safety standards
- Film SafetyGuaranteed for high speed film up to ASA / ISO1600(33DIN)
-
