X-Ray Inspection System
NUCTECH™ CX6040D
The NUCTECH™ CX6040D X-ray Inspection System, NUCTECH’s new generation product of dual-view dual-energy X-ray inspection machine for inspection of hand-held baggage, small checked luggage and parcels.
The CX6040D employs dual view design, images of each view will be shown on a dedicated monitor, thus dangerous objects and contraband can be detected efficiently.
Read more- Tunnel Dimensions620mm(W) × 420mm(H)
- Conveyor Speed0.20m/s
- Conveyor Height700mm
- Max. Load160kg
Technical Specifications
General Specifications
- Dual View ImagingBoth vertically and horizontally projected images
- Tunnel Dimensions620mm (W) × 420mm (H)
- Conveyor Speed0.2m/s
- Conveyor Height680mm
- Max. Load160KG
Image Performance
- Wire Resolution40 AWG
- Steel Penetration38mm
Image Processing
- Image EnhancementColor / BW, negative, high / low penetration, organic / inorganic stripping, general enhancement, multiabsorptivity, and suspect material enhancement, etc.
- Material ClassificationAccording to atomic number signatures
- ROI & ZoomStep / step less zoom, enlargement up to 32 times
- Image RecallPreceding images recallable
- Image Storage CapabilityUp to 50,000 images
Installation Data

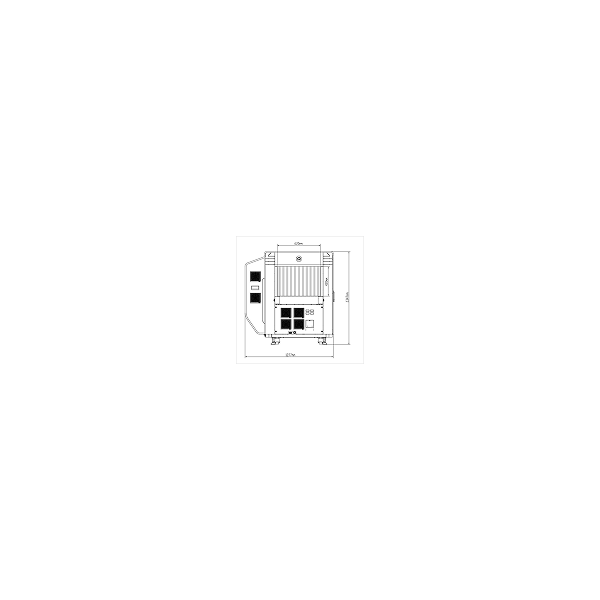

- Dimensions2392mm(L)×1207mm(W)×1317mm(H)
- Weight1000kg
- Operating Temperature / Humidity0° C ~ +40° C / 5%~95% (non-condensing)
- Storage Temperature / Humidity-40° C ~ +60° C / 5%~95% (non-condensing)
- Power Supply220VAC / 110VAC (-15%~+10%), 50Hz / 60Hz±3Hz
- Power Consumption1.2kVA
System Functions
- Standard FunctionsTime / date display, counters, user management, system-on / X-rayon timers, power on self-test, builtin diagnostic facilities, dual-direction scanning, system log, system standby and training, etc
- Optional FunctionsExplosives / narcotics detections, high-density area alert, threat image projection(TIP)
Health & Safety
- X-ray LeakageLess than 1μSv/hour (5cm from the housing), complying with all published international health and safety standards
- Film SafetyGuaranteed for high speed film up to ASA / ISO1600(33DIN)
-
