X-Ray Inspection System
NUCTECH™ CX60120D
The NUCTECHTM CX60120D X-ray Inspection System are designated designed for non-introding inspection of airline trolley. The CX60120D has a tunnel opening of 610mm wide by 1210mm high, suitable for scanning of major trolley models (e.g. ATLAS & KSSU) used by aviation industry. By applying Dual-View and Dual-Energy imaging technology, the CX60120D can provide high quality image while ensure high screening throughput up to 120 trolleys per hour, offering higher security level and inspection efficiency at the same time.
Combining with our advanced AI inspection system, the CX60120D is capable of automatic recognition of a wide range of contrabands and dangerous goods (e.g. firearms, ammunition, bladed weapons, lithium batteries, etc.), which further reducing the manpower compared to manual inspection process.
Download Brochure- Tunnel Dimensions610mm(W)×1210mm(H)
- Conveyor Speed0.20m/s
- Conveyor Height325mm
- Max. Load200kg
Technical Specifications
Image Performance
- Wire Resolution40 AWG
- Steel Penetration34mm
Image Processing
- Image EnhancementColor / BW, negative, high / low penetration, organic / inorganic stripping, general enhancement, multiabsorptivity, and suspect material enhancement, etc.
- Material ClassificationAccording to atomic number signatures
- ROI & ZoomStep / step less zoom, enlargement up to 32 times
- Image RecallPreceding images recallable
- Image Storage CapabilityUp to 100,000 images
Installation Data

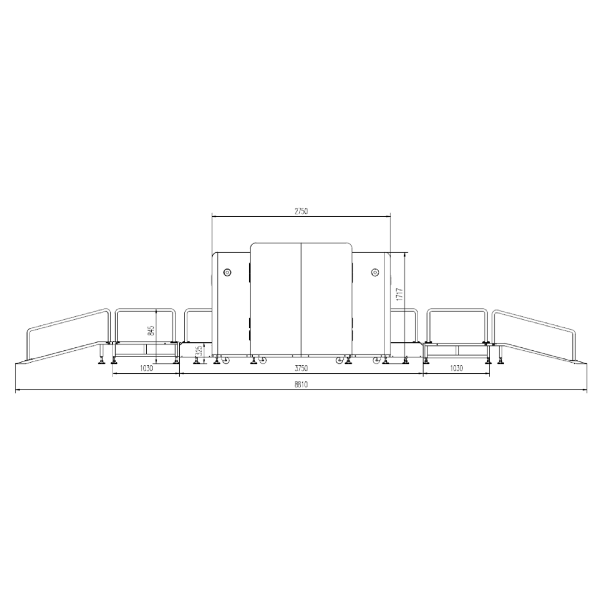

- Dimensions3750mm(L) × 1690mm(W) × 1860mm(H) (w/o entrance/exit sliding slopes)
- Weight
- Power Supply100VAC ~ 240VAC (-15% ~ +10%)，50 Hz/60Hz ±3Hz
- Power Consumption1.5kVA
System Functions
- Standard FunctionsTime / date display, counters, user management, system-on / X-rayon timers, power on self-test, builtin diagnostic facilities, dual-direction scanning, system log, system standby and training, etc
- Optional FunctionsExplosives / narcotics detections, high-density area alert, threat image projection(TIP)
Miscellaneous Functions
- Optional FunctionsAI inspection system, explosives/narcotics detection, high-density alert, threat image projection (TIP)
- X-ray LeakageLess than 1μSv/hour (5cm from the housing), complying with all published international health and safety standards
- Film SafetyGuaranteed for high speed film up to ASA / ISO1600 (33DIN)
