X-Ray Inspection System
NUCTECH™ CX180180DH
The NUCTECH™ CX180180DH X-ray Inspection System, NUCTECH’s new generation product of dual-view dualenergy X-ray inspection machine for inspection of large parcels as well as pallet cargoes. CX180180DH employees dual-view design, images of each view will be shown on a dedicated monitor, thus dangerous objects and contrabands hidden beneath overlapping area are more likely to be found and located.

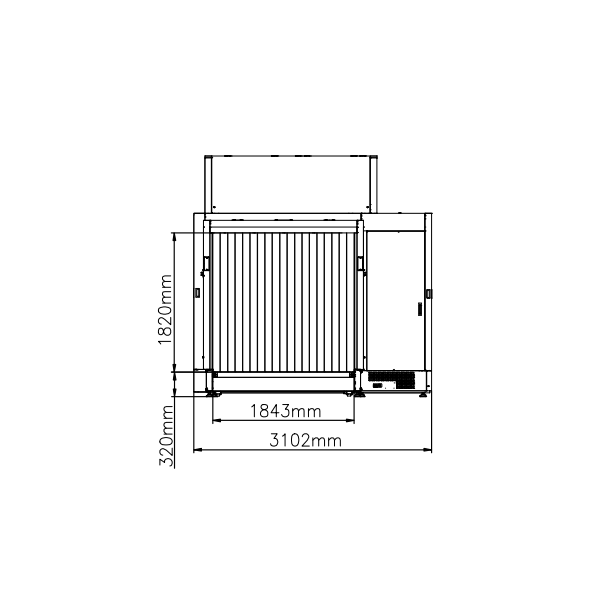

It stands out with more modern and ergonomic design for efficient and professional X-ray screening. With the tunnel dimensions of 1843mm width and 1820mm height, it is perfectly suitable for inspections of large luggage, pallet cargo at airports, customs, railway stations, ports, logistics company and warehouse, etc.
Read more- Tunnel Dimensions1843mm(W) × 1820mm(H)
- Conveyor Speed0.20m/s
- Conveyor Height320mm
- Max. Load2000kg
Technical Specifications
Image Performance
- Wire Resolution40 AWG
- Steel Penetration70mm
Image Processing
- Image EnhancementColor / BW, negative, high / low penetration, organic / inorganic stripping, general enhancement, multiabsorptivity, and suspect material enhancement, etc.
- Material ClassificationAccording to atomic number signatures
- ROI & ZoomStep / step less zoom, enlargement up to 32 times
- Image RecallPreceding images recallable
- Image Storage CapabilityUp to 100,000 images
Installation Data

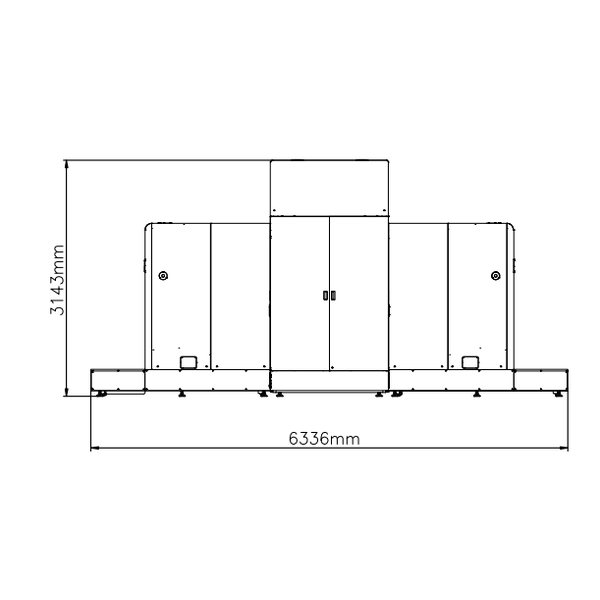

- Dimensions6336mm×3102mm×3153mm
- Weight5770kg
- Operating Temperature / Humidity0° C ~ +40° C / 5%~95% (non-condensing)
- Storage Temperature / Humidity-40° C ~ +60° C / 5%~95% (non-condensing)
- Power Supply220VAC / 110VAC (-15%~+10%), 50Hz / 60Hz±3Hz
- Power Consumption4.5kVA
System Functions
- Standard FunctionsTime / date display, counters, user management, system-on / X-rayon timers, power on self-test, builtin diagnostic facilities, dual-direction scanning, system log, system standby and training, etc
- Optional FunctionsExplosives / narcotics detections, high-density area alert, threat image projection(TIP)
Health & Safety
- X-ray LeakageLess than 1μSv/hour (5cm from the housing), complying with all published international health and safety standards
- Film SafetyGuaranteed for high speed film up to ASA / ISO1600(33DIN)
-
